HPR800XD Plasma System
HPR800XD Plasma System

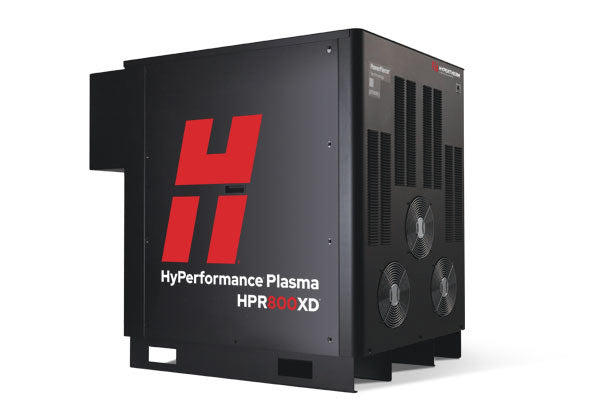

Het HyPerformance® HPR800XD® plasmasysteem is ontworpen en gebouwd voor maximale prestaties en productiviteit bij X-Y-, afschuin- en robotsnijbewerkingen. Het veelzijdige systeem met een nominale stroomsterkte van 800 ampère combineert hoge snijsnelheden, snelle procescycli, snelle omschakelingen en hoge betrouwbaarheid, en biedt ongeëvenaarde procesflexibiliteit voor het snijden, afschuinen en markeren van metalen tot 160 mm (6 1/4″) dik.
Mild steel
Shield cap Shield Nozzle retaining cap NozzleSwirl Ring Electrode Water tube
400 amp consumables - mild steel
| Amperage | Shield cap |
Shield | Nozzle retaining cap |
Nozzle | Swirl ring | Electrode | SilverPlus electrode |
Water tube |
|---|---|---|---|---|---|---|---|---|
| 30 A | 220747 | 220194 | 220754 | 220193 | 220180 | 220192 | ______ | 220340 |
| 50 A | 220747 | 220555 | 220754 | 220554 | 220553 | 220552 | ______ | 220340 |
| 80 A | 220747 | 220189 | 220756 | 220188 | 220179 | 220187 | 420566 | 220340 |
| 130 A | 220747 | 220183 | 220756 | 220182 | 220179 | 220181 | 220665 | 220340 |
| 200 A | 220637 | 220761 | 220757 | 220354 | 220353 | 220352 | 220666 | 220340 |
| 260 A | 220637 | 220764 | 220760 | 220439 | 220436 | 220435 | 220668 | 220340 |
| 400 A | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | 420530 | 220571 |
| 80 A bevel | 220637 | 220742 | 220845 | 220806 | 220179 | 220802 | ______ | 220700 |
| 130 A bevel | 220637 | 220742 | 220740 | 220646 | 220179 | 220649 | ______ | 220700 |
| 200 A bevel | 220637 | 220658 | 220845 | 220659 | 220353 | 220662 | ______ | 220700 |
| 260 A bevel | 220637 | 220741 | 220740 | 220542 | 220436 | 220541 | ______ | 220571 |
| * 260 A bevel | 220637 | 220897 | 220896 | 220898 | 220436 | 220899 | ______ | 220571 |
| 400 A bevel | 220637 | 220636 | 220635 | 220632 | 220631 | 220629 | ______ | 220571 |
* Recommended for use if you have excessive slag, or the torch is misfiring, when using standard consumables.
Stainless steel
Shield capShieldNozzle retaining cap Nozzle Swirl Ring Electrode Water tube
800 amp - stainless steel - above 4" thick
| Amperage | Shield cap |
Shield | Nozzle retaining cap |
Nozzle | Swirl ring | Electrode | Water tube |
|---|---|---|---|---|---|---|---|
| 45 A | 220747 | 220202 | 220755 | 220201 | 220180 | 220308 | 220340 |
| 60 A HDi | 220747 | 220815 | 220814 | 220847 | 220180 | 220339 | 220340 |
| 80 A | 220747 | 220338 | 220755 | 220337 | 220179 | 220339 | 220340 |
| 130 A | 220747 | 220198 | 220755 (H35) | 220197 | 220179 | 220307 | 220340 |
| 220756 (N2) | |||||||
| 200 A | 220637 | 220762 | 220758 | 220343 | 220342 | 220307 | 220340 |
| 260 A | 220637 | 220763 | 220758 | 220406 | 220405 | 220307 | 220340 |
| 400 A | 220637 | 220707 | 220712 | 220708 | 220405 | 220709 | 220571 |
| 600 A | 220637 | 220707 | 220635 (H35) | 220859 | 220353 (H35) | 220709 | 220571 |
| 220885 (N2) | 220405 (N2) | ||||||
| 800 A 4" (100 mm) and below |
220637 | 220886 | 220885 | 220884 | 220353 | 220882 | 220881 |
| 800 A above 4" (100 mm) |
220637 | 220886 | 220712 | 220884 | 220350 | 220882 | 220881 |
| 130 A bevel | 220637 | 220738 | 220739 | 220656 | 220179 | 220606 | 220571 |
| 260 A bevel | 220637 | 220738 | 220739 | 220607 | 220405 | 220606 | 220571 |
| 400 A bevel | 220637 | 220707 | 220712 | 220708 | 220405 | 220709 | 220571 |
| 600 A bevel | 220637 | 220707 | 220635 (H35) | 220859 | 220353 (H35) | 220709 | 220571 |
| 220885 (N2) | 220405 (N2) | ||||||
| 800 A bevel 4" (100 mm) and below |
220637 | 220886 | 220885 | 220884 | 220353 | 220882 | 220881 |
| 800 A bevel above 4" (100 mm) |
220637 | 220886 | 220712 | 220884 | 220350 | 220882 | 220881 |
Aluminum
Shield capShieldNozzle retaining cap Nozzle Swirl Ring Electrode Water tube
800 amp - aluminum consumables - above 4" thick
| Amperage | Shield cap |
Shield | Nozzle retaining cap |
Nozzle | Swirl ring | Electrode | Water tube |
|---|---|---|---|---|---|---|---|
| 45 A | 220747 | 220202 | 220756 | 220201 | 220180 | 220308 | 220340 |
| 130 A | 220747 | 220198 | 220755 (H35) | 220197 | 220179 | 220307 (H35) | 220340 |
| 220756 (Air) | 220181 (Air) | ||||||
| 200 A | 220637 | 220762 | 220759 | 220346 | 220342 | 220307 | 220340 |
| 260 A | 220637 | 220763 | 220758 | 220406 | 220405 | 220307 | 220340 |
| 400 A | 220637 | 220707 | 220712 | 220708 | 220405 | 220709 | 220571 |
| 600 A | 220637 | 220707 | 220712 (H35) | 220859 | 220353 (H35) | 220709 | 220571 |
| 220885 (N2) | 220405 (N2) | ||||||
| 800 A 4" (100 mm) and below |
220637 | 220886 | 220885 | 220884 | 220353 | 220882 | 220881 |
| 800 A above 4" (100 mm) |
220637 | 220886 | 220712 | 220884 | 220350 | 220882 | 220881 |
